MGL (12mm) Copper Pipes Specification

MGL 12mm Copper Pipe

Material

Copper

Diameter

12mm (metric size)

Wall Thickness

0.6mm and 1mm

Length

3-meter or 6-meter

Pressure Rating

Can vary depending on the specific pipe and application, but typically ranges from 10 bar to 30 bar

Temperature Rating

Copper pipes can handle a wide range of temperatures, but should not be used for applications that exceed 200°C

Types Of MGL (12mm) Copper Pipes

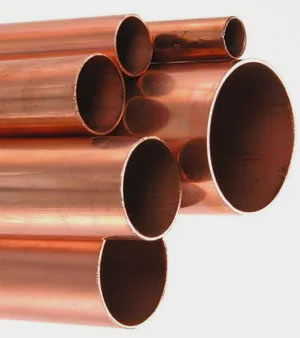

Type M Pipe

Type M Pipe

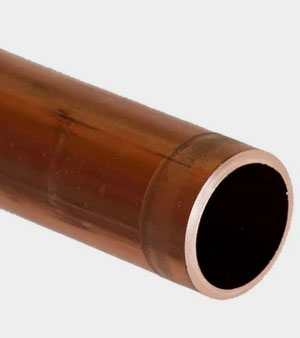

Type L Pipe

Type L Pipe

Type K Pipe

Type K Pipe

ACR (Air Conditioning and Refrigeration) Pipe

ACR (Air Conditioning and Refrigeration) Pipe

12mm Copper Pipe Price, 12mm Copper Cable, 12mm Copper Rod Stockist, 12mm Copper Pipe Coil, MGL 12 mm Copper Pipe Exporter In India

MGL (12mm) Copper Pipes Chemical Composition

Copper (Cu) 99.85% Min.
Phosphorus (p) 0.015% - 0.040%
Lead (Pb) 0.005% maximum
Iron (Fe) 0.050% maximum
Zinc (Zn) 0.050% maximum

Mechanical Property Of MGL (12mm) Copper Pipes

Tensile Strength 290-360 MPa (megapascals)
Yield Strength 140-310 MPa
Elongation 30-50%
Hardness (HV) 70-110

MGL (12mm) Copper Pipes Physical Property

Standard Copper NO. Chemical Composition Mechanical Properties
CU% P% Temper Tensile strength (Mpa) Elongation (%) Average Grain Size (mm)
ASTM
B280/68
C12200 >99.9 0.015 to 0.040 >60 >205 >40 >0.040
>50 >245
