PNG Copper Fitting Specification

benefit

Specification

ASME B16.9 / B16.22, ASTM B62 / ASME SB62

End Type

Buttweld, Socketweld, Threaded and Pressed or Push-Fit

Temperature Range

Suitable for use in temperatures ranging from -20°C to 120°C (-4°F to 248°F)

Sizes

Available in a Range of Sizes From 1/4" to 4"

Gas Operating Parameters

1 bar at operating temperatures from -20°C - to +70°C

Pressure Rating

Up to 250 psi (17 bar) Depending on The Size and Type of Fitting

Types Of PNG Copper Fitting

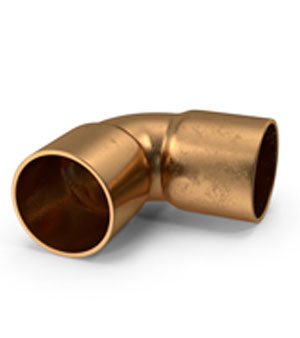

PNG Copper Elbow

PNG Copper Elbow

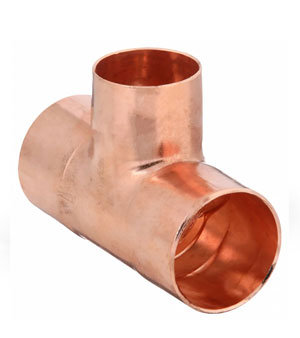

PNG Copper Tee

PNG Copper Tee

PNG Copper Coupling

PNG Copper Coupling

PNG Copper Reducer

PNG Copper Reducer

Copper Adapter For PNG, PNG Copper Hydraulic Hose Caps, PNG Copper Straight Couplings, PNG Copper Elbow Connector, PNG Copper Quick Couplers, PNG Copper Reducing 90 Degree Elbow, PNG Copper 45° Elbow, 15mm Copper Fitting For PNG, Copper PNG Gas Fitting, PNG Copper Cross Fittings, Copper Fitting For Natural Gas Pipe, PNG Copper Fitting Exporter in India.

PNG Copper Fitting Chemical Composition

Element Composition (%)
Copper (Cu) ≥ 99.9%
Phosphorus (P) 0.015 - 0.040%
Lead (Pb) ≤ 0.005%
Iron (Fe) ≤ 0.05%
Zinc (Zn) ≤ 0.05%
Sulfur (S) ≤ 0.010%
Antimony (Sb) ≤ 0.005%
Arsenic (As) ≤ 0.005%
Bismuth (Bi) ≤ 0.001%
Nickel (Ni) ≤ 0.05%
Selenium (Se) ≤ 0.005%
Tellurium (Te) ≤ 0.008%
Aluminum (Al) ≤ 0.005%
Manganese (Mn) ≤ 0.05%
Silicon (Si) ≤ 0.010%
Cobalt (Co) ≤ 0.005%
Chromium (Cr) ≤ 0.05%
Tin (Sn) ≤ 0.05%

Mechanical Property Of Piped Natural Gas Copper Fitting

Property Typical Value
Tensile Strength ≥ 275 MPa
Yield Strength ≥ 125 MPa
Elongation ≥ 30%
Hardness ≤ 85 HRB
Modulus of Elasticity 117 GPa
Density 8.9 g/cm3
Thermal Conductivity 380 W/(m*K)
Coefficient of Thermal Expansion 16.5 × 10^-6 /K

We Are Supplier Of PNG Copper Fitting To Various Application Industries Like

Export Destinations Of Piped Natural Gas Copper Fitting
