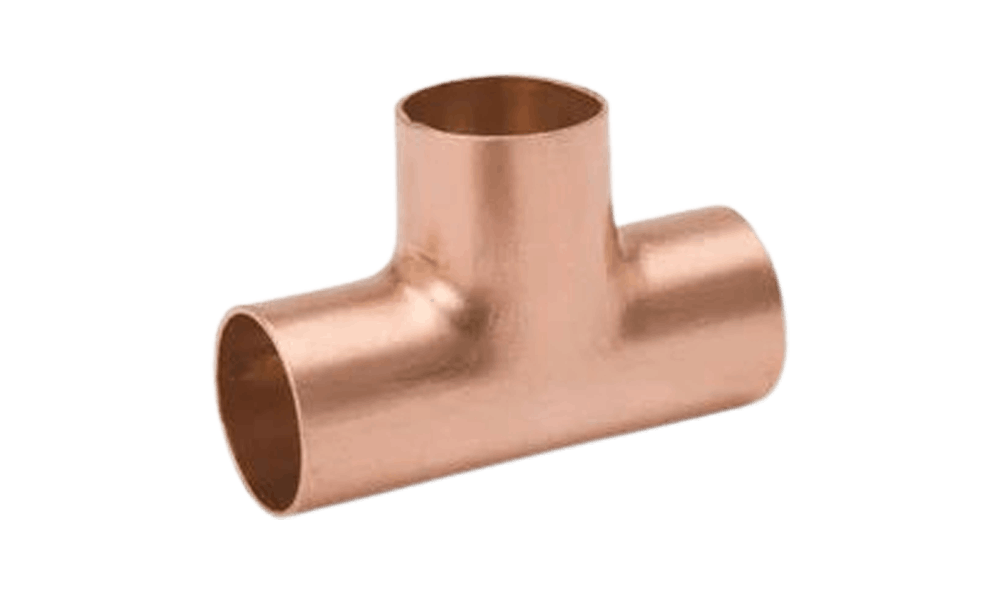

Copper Tee Specification
Types Of Copper Tee

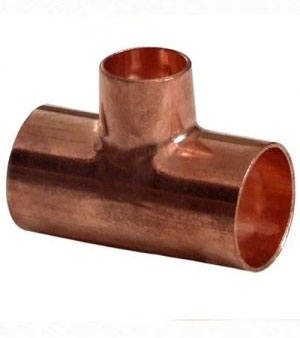

Copper Reducing Tee

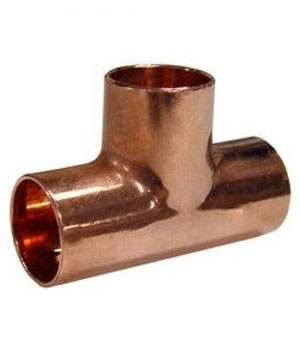

Copper Equal Tee

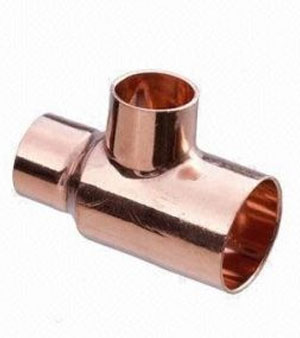

Copper Unequal Tee

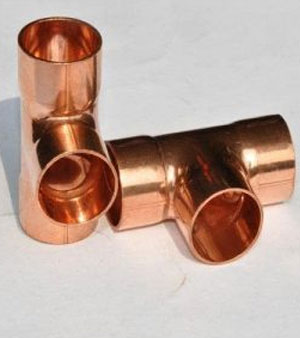

Copper Swaging Tee
Male Connection Copper Tee, Pressure All Cup Copper Tee, Copper Tee Fitting, Press Copper Tee, Wrot Copper Tee Fitting, ASME B16.9 Copper Tees, Copper Pipe Tee, Copper 70600 Tee, Copper Tee Price, Copper Tee Dimensions, Cu 10800 Elbow, CxCxC Copper Tee, Copper Tee Exporter in India
Copper Tee Chemical Composition
| Standard | Copper NO. | Chemical Composition | Mechanical Properties | ||||
| CU% | P% | Temper | Tensile strengtd (Mpa) | Elongation (%) | Average Grain Size (millimeter) | ||
| Copper Tee Fittings | C12200 | >99.9 | 0.015 to 0.040 | >60 | >205 | >40 | >0.040 |
| >50 | >245 | ||||||
Mechanical Property Of Copper Tee
| Size | End Connection | Working Pressure | Burst Pressure | Temperature Range |
| 1", 1/2", 2", 3/4", 1-1/2", 1-1/4" | Sweat | Up to 300 psi | Up to 1200 psi | -20°F to 400°F |
| 1", 1/2", 2", 3/4", 1-1/2",1-1/4" | tdreaded | Up to 300 psi | Up to 1200 psi | -20°F to 400°F |
Copper Tee Dimension Chart
| NPS Of Equal Tee | Outside Daimeter (O.D.) at bevel |
Center-to-End | |
| (C) Run | (M) Outlet | ||
| 1/2" | 21.3 | 25 | 25 |
| 3/4" | 26.7 | 29 | 29 |
| 1" | 33.4 | 38 | 38 |
| 1 1/4" | 42.2 | 48 | 48 |
| 1 1/2" | 48.3 | 57 | 57 |
| 2" | 60.3 | 64 | 64 |
| 2 1/2" | 73.0 | 76 | 76 |
| 3" | 88.9 | 86 | 86 |
| 3 1/2" | 101.6 | 95 | 95 |
| 4" | 114.3 | 105 | 105 |
| 5" | 141.3 | 124 | 124 |
| 6" | 168.3 | 143 | 143 |
| 8" | 219.1 | 178 | 178 |
| 10" | 273.0 | 216 | 216 |
| 12" | 323.8 | 254 | 254 |
| 14" | 355.6 | 279 | 279 |
| 16" | 406.4 | 305 | 305 |
| 18" | 457.0 | 343 | 343 |
| 20" | 508.0 | 381 | 381 |
| 22" | 559.0 | 419 | 419 |
| 24" | 610.0 | 432 | 432 |
We Are Supplier To Various Application Industries Like
Instrumentation
Hydraulic & Pneumatic
System
Automotive Industries
Structural Purposes
Medical
Pharmaceutical
Desalination and Wastewater
Projects
Food and Pharmaceutical
Processing
Export Destinations Of Copper Tee
