Pneumatic Copper Pipes Specification

benefit

Specification

Pneumatic Systems

Features

Durable, corrosion-resistant, lightweight, easy to install

Standard

ASTM B88, ASME B16.22

Pressure Rating

Up to 600 psi

Size Range

1/4 inch to 2 inch

Length

Type L: 0.03 inch to 0.06 inch; Type K: 0.049 inch to 0.065 inch

Types Of Pneumatic Copper Pipes

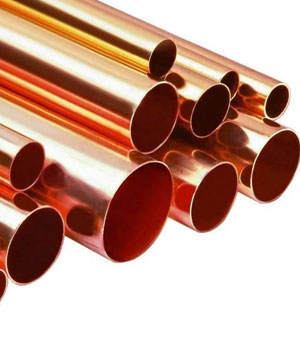

Pneumatic Copper Pipe Type L

Pneumatic Copper Pipe Type L

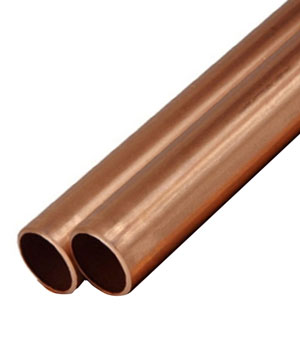

Pneumatic Copper Pipes Type K

Pneumatic Copper Pipes Type K

Pneumatic Copper Pipes Supplier, Copper Pneumatic Tubing, Compressed Air Copper Pipes, Copper Pipes For Pneumatic Tools, Pneumatic Copper Pipe Fittings, Copper Piping For Air Compressor Systems, Pneumatic Copper Pipes Dealers, Pneumatic Copper Pipes Exporter in India

Pneumatic Copper Pipes Chemical Composition

Element Composition
Copper (Cu) 99.90% min.
Phosphorus (P) 0.015% - 0.040%
Iron (Fe) 0.050% max.
Lead (Pb) 0.005% max.
Zinc (Zn) 0.050% max.
Total Impurities 0.060% max.

Mechanical Property Of Pneumatic Copper Pipes

Property Value
Tensile Strength 35000 - 45000 psi
Yield Strength 20000 - 30000 psi
Elongation 30 - 40%
Hardness Rockwell F65 max.
Modulus of Elasticity 16 x 10^6 psi

Physical Properties of Pneumatic Copper Pipes

Property Value
Density 8.96 g/cm³
Melting Point 1084.62°C
Thermal Conductivity 401 W/mK
Specific Heat Capacity 0.385 J/g°C
Coefficient of Thermal Expansion 16.5 × 10^-6/K
Electrical Conductivity 58.0 × 10^6 S/m
Young's Modulus 117 GPa
Poisson's Ratio 0.34

Dimensions and Physical Characteristics of Copper Pipe

Nominal Size
inches
Outside
Diameter
Inside
Diameter
Wall
Thickness
Calculated Values (based on nominal dimensions) - - - -
Area of Bore,
sq inches
Weight of
Tube Only,
pounds/linear ft
Cross Weigh of
Tube & Water,
pounds/linear ft
Contents of Tube
per linear ft
- - - -
Cu ft Gal - - - - - - -
1/4 .375 .305 .035 .073 .145 .177 .00051 .00379
3/8 .500 .402 .049 .127 .269 .324 .00088 .00660
1/2 .625 .527 .049 .218 .344 .438 .00151 .0113
5/8 .750 .652 .049 .334 .418 .562 .00232 .0174
3/4 .875 .745 .065 .436 .641 .829 .00303 .0227
1 1.125 .995 .065 .778 .839 1.18 .00540 .0404
1 1/4 1.375 1.245 .065 1.22 1.04 1.57 .00847 .0634
1 1/2 1.625 1.481 .072 1.72 1.36 2.10 .0119 .0894
2 2.125 1.959 .083 3.01 2.06 3.36 .0209 .156
2 1/2 2.625 2.435 .095 4.66 2.93 4.94 .0324 .242
3 3.125 2.907 .109 6.64 4.00 6.87 .0461 .345
3 1/2 3.625 3.385 .120 9.00 5.12 9.01 .0625 .468
4 4.125 3.857 .134 11.7 6.51 11.6 .0813 .608
5 5.125 4.805 .160 18.1 9.67 17.5 .126 .940
6 6.125 5.741 .192 25.9 13.9 25.1 .180 1.35
8 8.125 7.583 .271 45.2 25.9 45.4 .314 2.35
10 10.125 9.449 .338 70.1 40.3 70.6 .487 3.64
12 12.125 11.315 .405 100.55 57.8 101 .701 5.25
